Solar, Battery and EV charger Installation in Napoleons, Victoria

We’re proud to showcase a cutting-edge Design, Supply, Installation, and Commissioning of a Sigenergy Battery Energy Storage System (BESS)—engineered for high performance, flexibility, and future-ready energy management.

System Overview

This installation features the powerful Sigenergy SigenStor-10S-24 system, fully compliant with AS4777-2:2020 standards, delivering seamless integration between solar generation, battery storage, and smart energy control.

Solar Generation

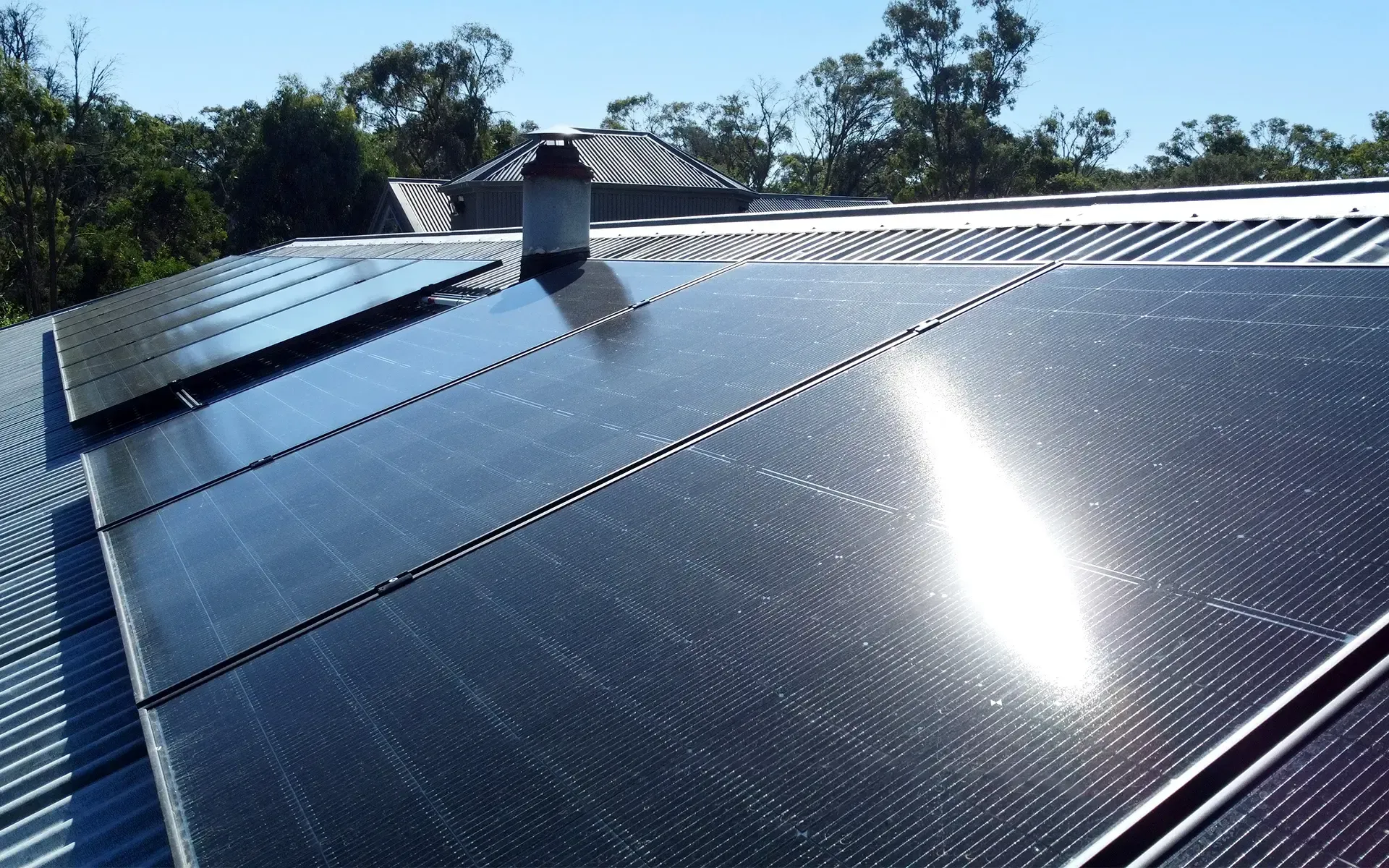

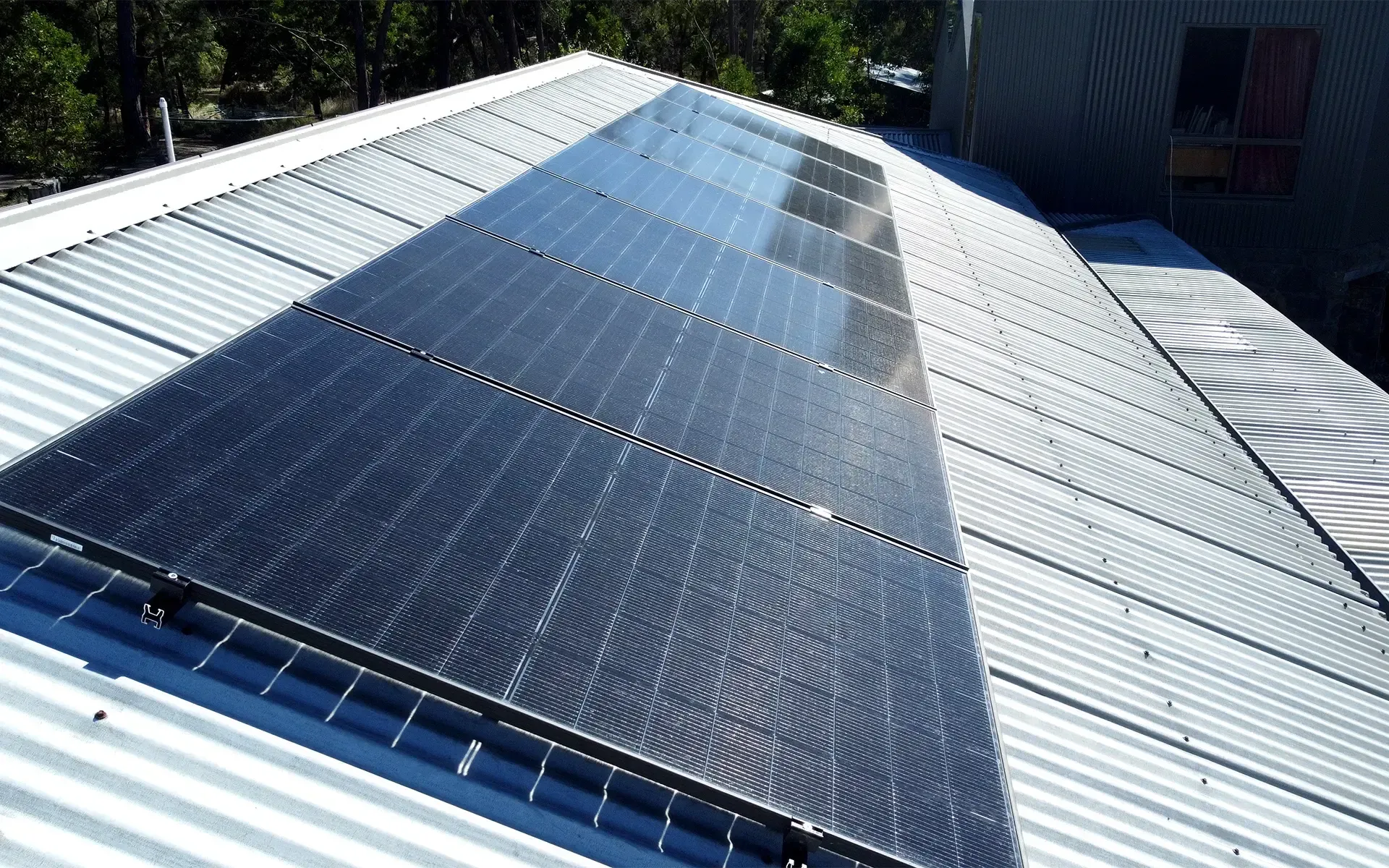

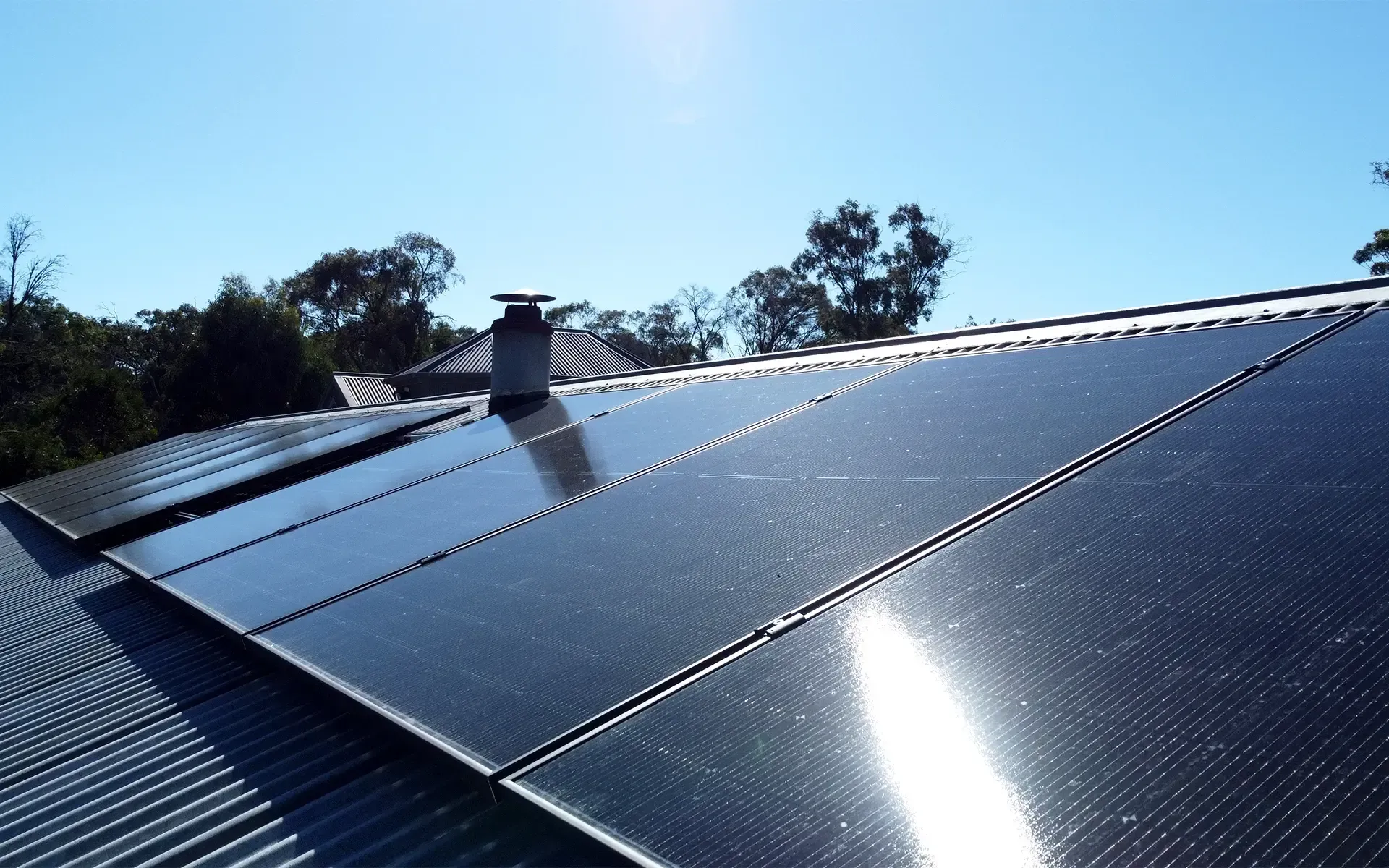

• 21 × Suntech STP440S-H48-Nth+ 440W Panels
  Total capacity: 9.24 kW DC
  Installed on a tin roof using premium Schletter mounting, ensuring durability and optimal panel positioning for maximum output.

Battery Storage & Inverter System

• 1 × SigenStor EC 10.0SP Inverter
  10 kW of inverter power
  High-performance hybrid inverter designed to integrate seamlessly with solar, battery, and grid systems.

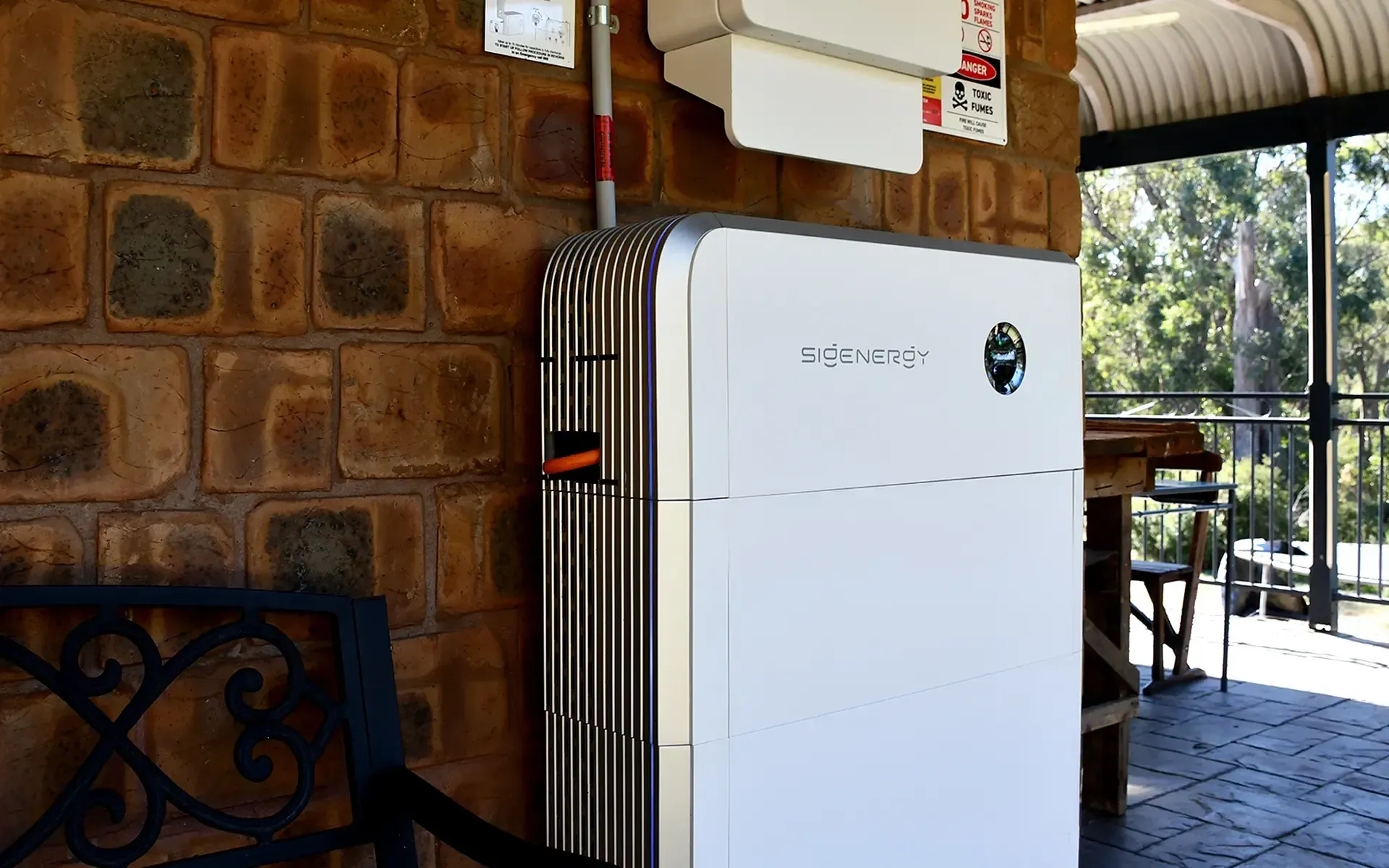

• 3 × SigenStor BAT 8.0 Modules
  Total storage capacity: 24.18 kWh
  Installed securely on an external brick wall (south-facing side) for efficient space use and optimal thermal conditions.
• 1 × Sigen Gateway SP
  Provides smart system orchestration, enabling backup power, energy optimisation, and grid interaction.

Smart Energy Integration

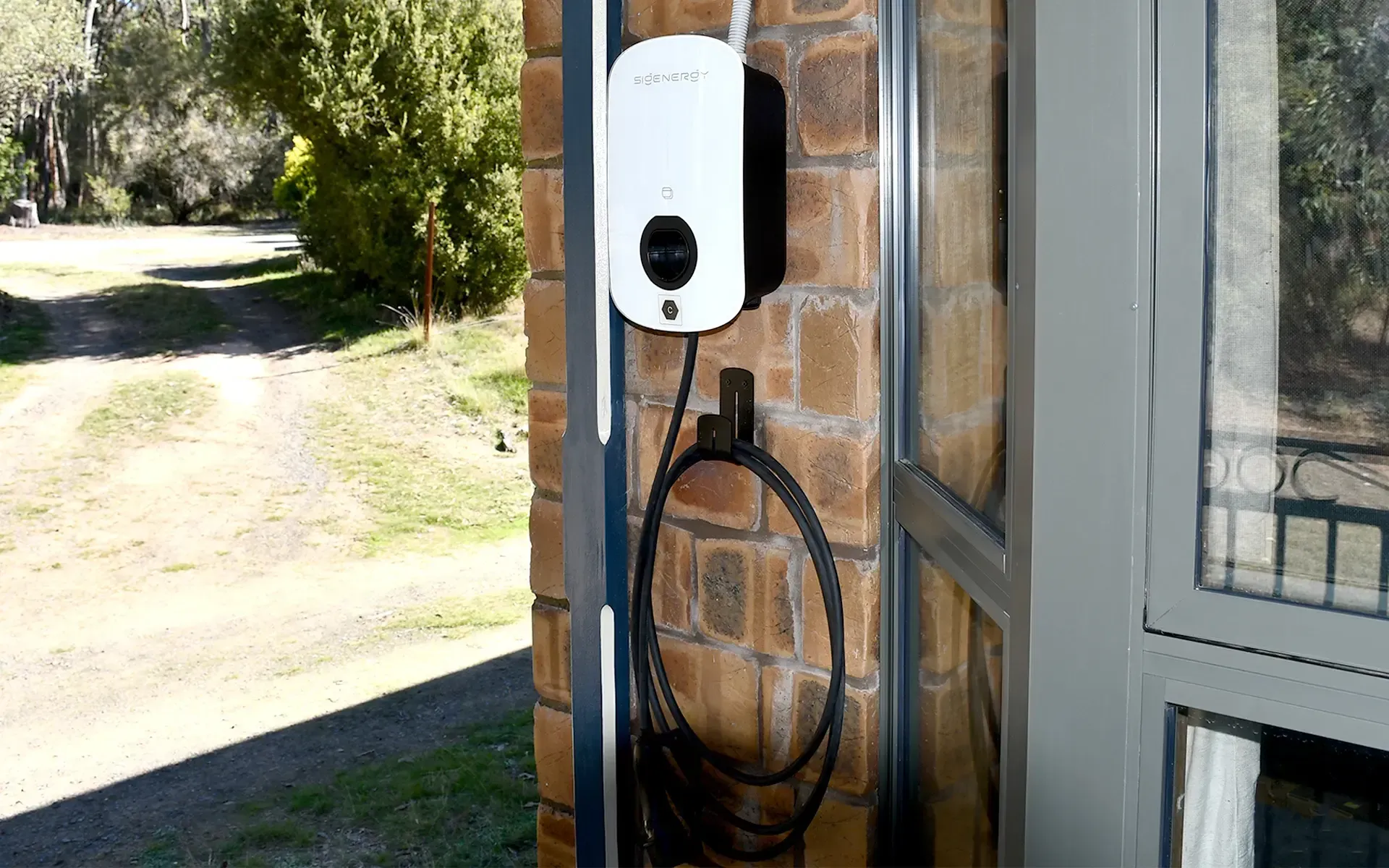

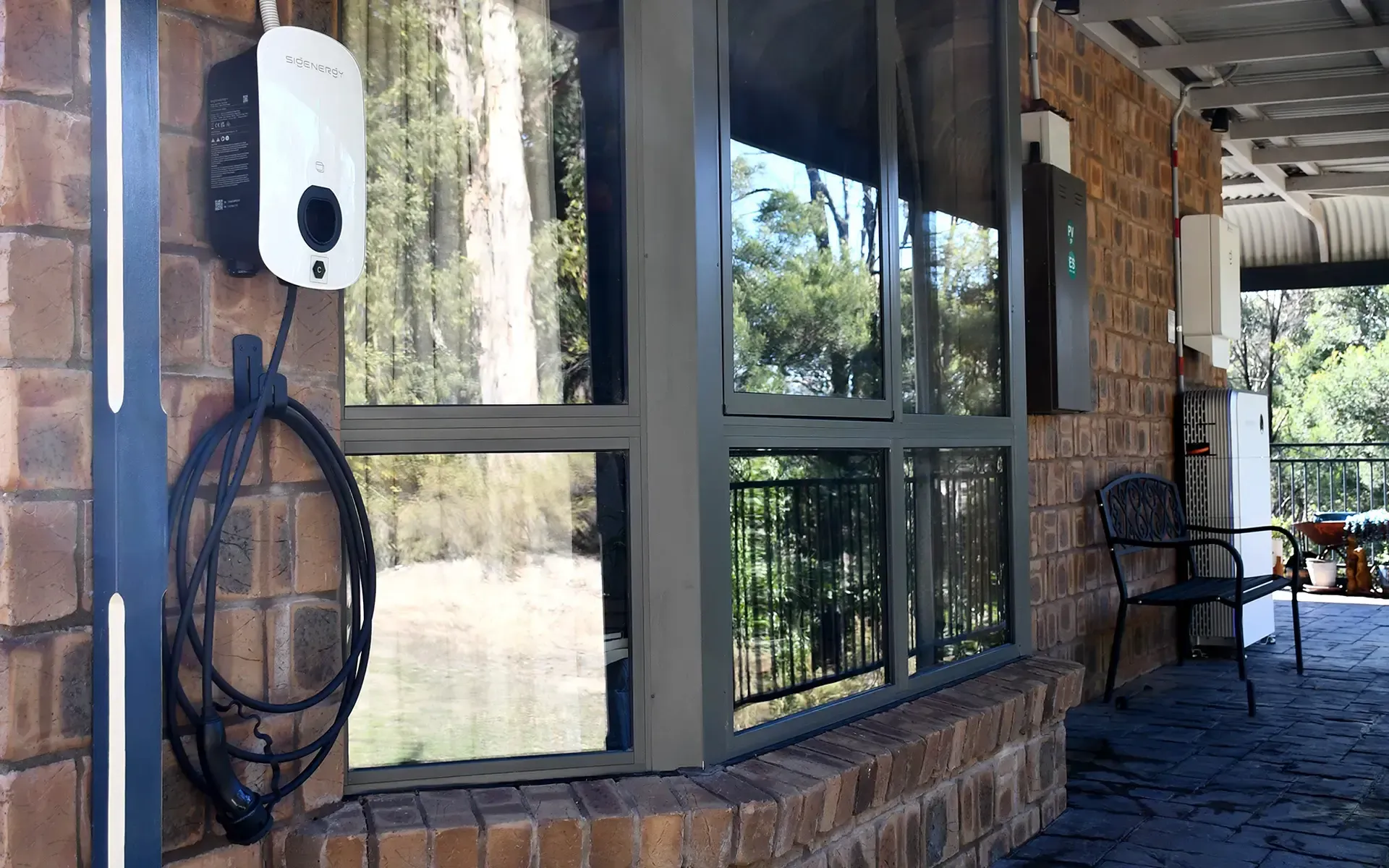

• 1 × Sigenergy EV Charger (Single Phase, 7 kW)
  Installed adjacent to the main switchboard (MSB) for convenient EV charging directly powered by solar and battery storage.
• mySigen App
  Real-time monitoring and control of energy production, storage, EV charging, and consumption—all from your smartphone.

Key Benefits

• High-Capacity Storage (24.18 kWh)
  Store more solar energy for use day and night, reducing reliance on the grid.
• Powerful Inverter Performance (10 kW)
  Supports high household energy demands with ease.
• Integrated EV Charging
  Charge your electric vehicle using clean, renewable solar energy.
• Smart Monitoring & Control
  The mySigen app puts complete energy management at your fingertips.
• Flexible & Scalable Design
  Modular battery system allows for future expansion as energy needs grow.

Built for Modern Energy Needs

This project demonstrates how the Sigenergy ecosystem can deliver a fully integrated, intelligent energy solution. From solar generation to battery storage and EV charging, every component works together seamlessly to maximise efficiency, reduce energy costs, and support a more sustainable lifestyle.

Thinking about upgrading to a smarter energy system? This installation is a perfect example of what’s possible with next-generation solar and battery technology.
